Vehicle GPS tracker VT-380


Introduction
VT380 is a GPS/GPRS based tracking device specially developed and designed for vehicle real-time tracking and fleet management. VT380 has inbuilt GPS module to obtain accurate position data and utilizes its GSM capability to send the position data to a specified mobile phone or server base for tracking and fleet management. With internal memory, VT380 can store GPS coordinates when there is no GPRS connection or at a specified interval requested by the user. One optional feature of VT380 is that a microphone can be linked out to be hidden somewhere inside the vehicle for listening to the cabin.


Feature
SMS and GPRS TCP/UDP Communication
Track on Demand
Show Location Directly on Mobile Phone
Track by Time Interval
Listen (Voice Wiretapping) (Optional)
GSM Blind Area Memory
Logging Capacity up to 180,000 Waypoints
Inbuilt Motion Sensor for Power Saving
SOS Panic Button
Movement Alarm
Geo-fencing Control
Low Battery Alarm
Speeding Alarm
GPS Blind Area Alarm (in/out)
Power-cut Alarm
Engine Cut (Stop Engine)
I/O: 5 digital inputs, 3 negative and 2 positive triggering; 5 outputs
Analog Input: 2 analog inputs of 10 bits resolution for connecting fuel level sensor or other sensors.

Specification


Items

Specification

Power Supply

+9V - +36V / 1.5A

Backup Battery

850mAh

Normal power consumption

85mA/h

Dimension

104mm x 62mm x 24mm

Installation Dimension

104mm x 83mm x 24mm

Weight

190g

Operating temperature

-20° to 55° C

Humidity

5% to 95% Non-condensing

Frequency

Quad Band GSM 850/900/1800/1900Mhz

GPS Module

latest GPS SIRF-Star III chipset

GPS Sensitivity

-158Db

GPS Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

Position Accuracy

10 meters, 2D RMS

Velocity Accuracy

0.1 m/s

Time Accuracy

1 us synchronized to GPS time

Default datum

WGS-84

Reacquisition

0.1 sec., average

Hot start

1 sec., average

Warm start

38 sec., average

Cold start

42 sec., average

Altitude Limit

18,000 meters (60,000 feet) max.

Velocity Limit

515 meters/second (1000 knots) max.

LED

2 LED lights to show GPS/GSM status.

Flash Memory

4MB

Button

One SOS Button

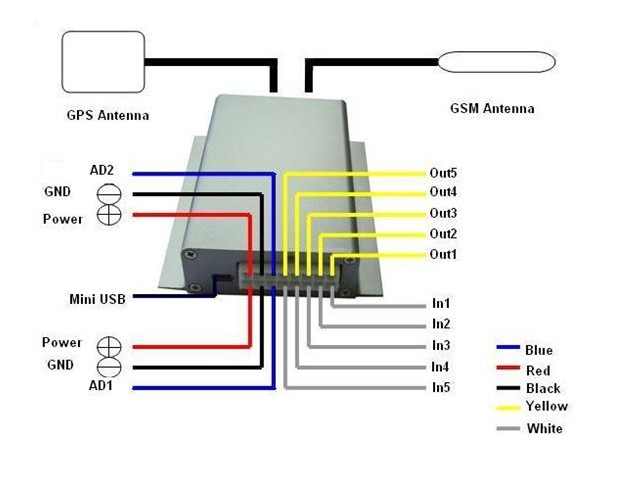

Interface

5 Digital Inputs
5 Outputs.
2 Analog Input of 10 bits resolutions.






Standard Accessories

1 GPS Antenna

1 GSM Antenna

1 Set of socket cables

1 Relay

1 User manual
